Industrial Crystallizers
Our Industrial Crystallizers
Whiting is a leading designer and manufacturer of industrial crystallizers for the global chemical processing industry. Crystallizers isolate chemicals from a solution by controlled growth techniques to form high purity crystals with uniform shape and size.
Utilizing this process, crystallizers can also purify the liquid by crystallizing the contaminant, enabling the liquid to be reused or discharged safely into the environment. Swenson supplies a wide range of crystallizers to the chemical process industry.
Trusted for over 100 years.
Our Clients

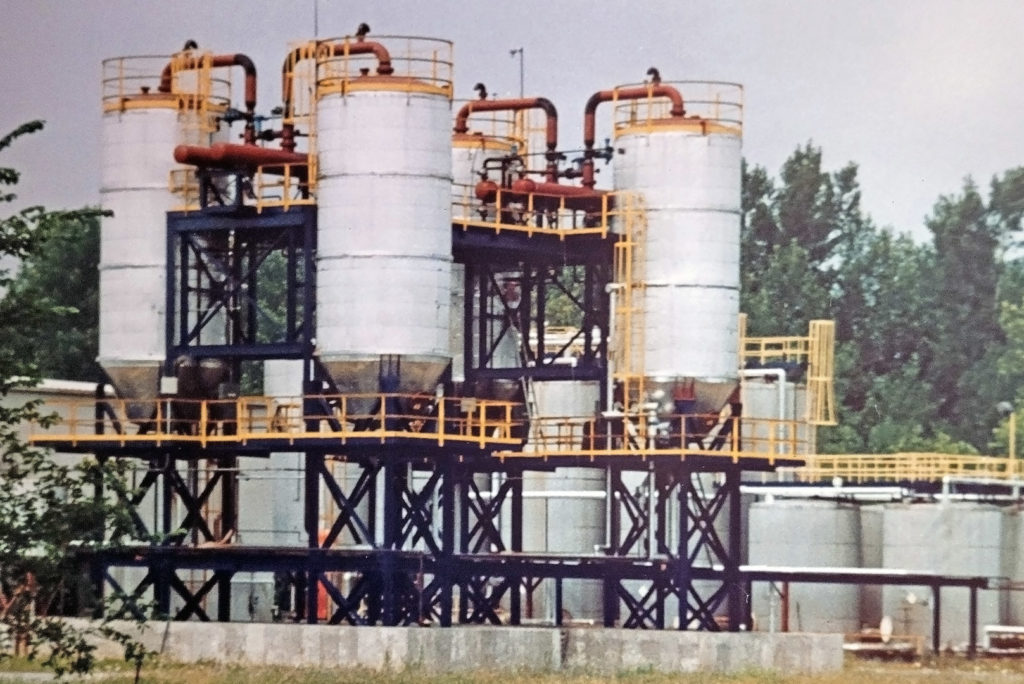

Batch Vacuum Crystallizers
For special cases requiring very low operating temperatures achieved only by very high vacuum, and for those applications involving relatively small amounts of material – or when the material being processed must be handled on a less than a continuous basis – it is often both convenient and economical to use a Swenson batch vacuum crystallizer.

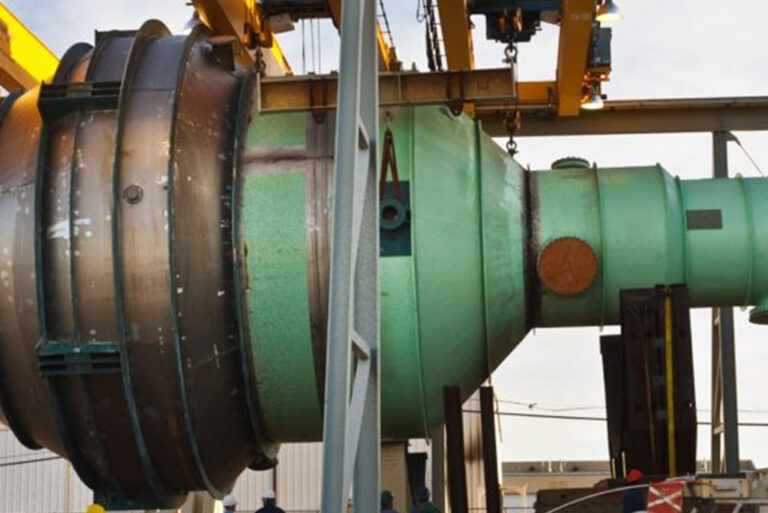

Draft Tube Baffle Crystallizer
For proven performance in superior control over crystal size, uniformity, and control of fines, the Swenson draft tube baffle (DTB) crystallizer is the leading technology.
Forced Circulation Crystallizer
For applications requiring high evaporation rates, involving scaling compounds, inverted solubility solutions, or high viscosity, the forced-circulation crystallizer offers the most effective solution.

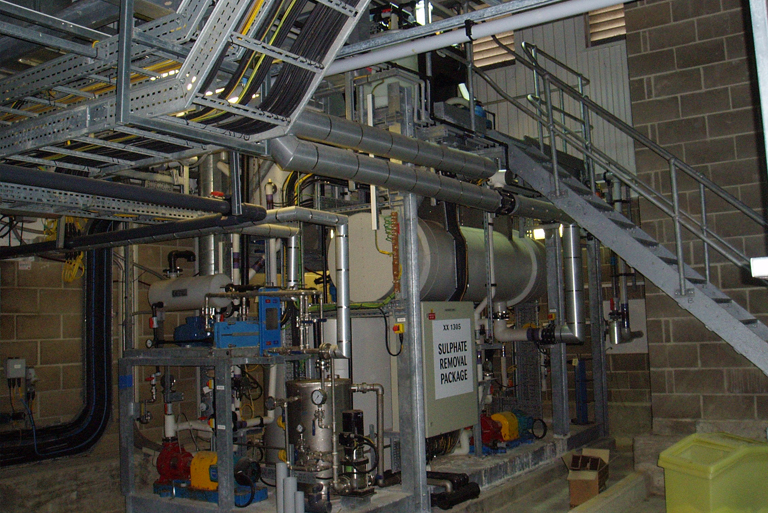

Surface Cooled Crystallizers
For operation at temperatures below which it is not economically feasible to use vacuum equipment, or for solutions with very high boiling point elevations, the Swenson surface cooled crystallizer is well suited.
